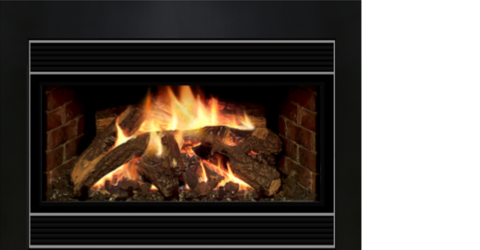

Mendota D40 Deep Timber Gas Fireplace Insert
If you've got a fireplace that mostly sits cold, the Mendota D40 Deep Timber gas insert is worth a look. It drops into the existing opening and gives you a gas log fire with a wide span between low and high fire: 10,000 to 40,000 BTU/hr input on natural gas.
The D40 keeps things straightforward. It uses a standing pilot powered by a thermopile and a 190 CFM dual blower system that runs on house power. Mendota lists 75.9% P.4 efficiency. It needs an opening at least 34-1/4 inches wide, 23-1/4 inches high, and 16-1/4 inches deep.
What Makes the D40 Deep Timber Different
- Wide input range. From 10,000 BTU/hr up to 40,000 BTU/hr on natural gas, so you can run a gentle fire or turn it up.
- Standing pilot. The standing pilot and thermopile make their own power. In an outage the manual allows one hour on and one hour off, and the blower won't run.
- Dual blowers. A 190 CFM dual blower system helps move heat out of the fireplace and into the room.
- Sealed combustion. A sealed-combustion direct vent design with Mendota's BurnGreen system, vented to the outside.
This listing is the Mendota D40 Deep Timber direct vent gas fireplace insert, model AA-11-00709, with ratings for natural gas and propane.
Key Specifications
- Natural gas input: 10,000 to 40,000 BTU/hr
- Propane input: 10,000 to 39,000 BTU/hr
- Efficiency (P.4): 75.9%
- Ignition: Standing pilot with thermocouple safety and thermopile
- Blower: 190 CFM dual blower system, 120VAC
- Power outage operation: Burner runs without AC power, limited to one hour on and one hour off cycles. The blower will not run.
- Venting: Direct vent: co-linear 4" exhaust / 4" air inlet, or coaxial 4" exhaust / 6" air inlet
- Minimum fireplace opening: 34-1/4" W x 23-1/4" H x 16-1/4" D
These BTU and efficiency figures come from Mendota. Real comfort depends on the room, the fireplace, the installation, and how the insert is used.
Ownership & Maintenance
If you buy it from us, we provide ongoing service for our customers.
Every fireplace is a little different, so we check yours before we recommend an insert. Browse Mendota fireplaces and inserts or visit our Auburn, Brunswick, and Yarmouth showrooms to talk through fit, venting, and installation.
