NetZero Waterplace Water Vapor Fireplace Burner

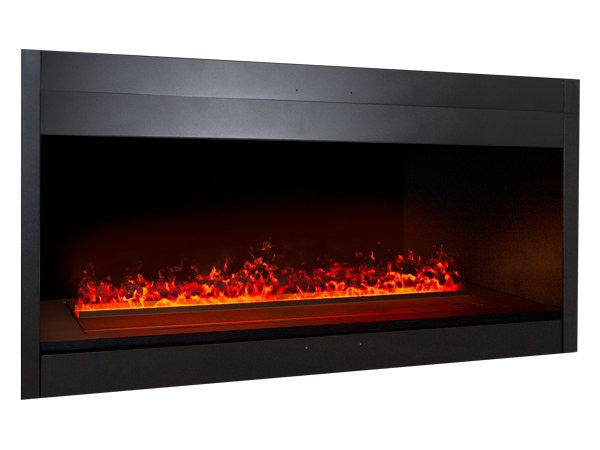

The NetZero Waterplace makes a flame out of water vapor and LED light. It burns no fuel and it produces no heat, so it's all about the look: a moving flame you can set into a NetZero firebox or a custom built-in. Swap in log sets like White Oak, Birch, Norway Spruce, or Driftwood, or go modern with glass or stone media.

Burners come in 20, 40, and 60 inch lengths. The standard Waterplace has natural orange flames and runs from its own tank, up to 20 hours per fill. The Platinum adds 30 adjustable flame colors, a smartphone app, and a direct water line connection for continuous operation. Standard models can hook up to a water line too with NetZero's Direct Plumb Kit.

What Makes the Waterplace Different

• Water vapor flames. Vapor lit by LEDs creates the flame, with no fuel burned.
• No heat. Nothing burns, so the flame is purely about the look of a fire.
• Standard or Platinum. Standard models have natural orange flames. Platinum adds 30 adjustable flame colors and app control.
• Tank or water line. Run it from the tank for up to 20 hours, or connect a water line for continuous use.
• Longer flame lines. Burners can be combined in a custom enclosure for up to 20 feet of flame.

This listing is the NetZero Waterplace burner in 20, 40, and 60 inch sizes, in standard (NZW20B, NZW40B, NZW60B, natural orange flames) and Platinum (NZWP20B, NZWP40B, NZWP60B, adjustable colors) versions. Fireboxes are sold separately.

Key Specifications

• Heat output: None; it produces no heat
• Fuel: None; water vapor and LED light
• Burner dimensions (L x W x H): Standard: 20, 40, or 60 in x 13 in x 8-3/4 in. Platinum: 20, 40, or 60 in x 13 in x 11-3/8 in
• Tank capacity: 20 in: 2.0 L (0.5 gal); 40 in: 4.0 L (1.0 gal); 60 in: 6.0 L (1.5 gal)
• Run time: Up to 20 hours per tank; continuous when connected to a water line
• Water line connection: Platinum connects directly (1/4 in PEX); standard models need the Direct Plumb Kit (AA-11-05163)
• Flame color: Standard: natural orange. Platinum: 30 adjustable flame colors
• Controls: Remote control on all models; adjustable flame height and speed; smartphone app on Platinum only (2.4 GHz Wi-Fi)
• Electrical: 120V, 60Hz, minimum 5-amp circuit
• Power use: NZW20B 40 W; NZWP20B 65 W; NZW40B 87 W; NZWP40B 130 W; NZW60B 125 W; NZWP60B 195 W
• Weight: NZW20B 26 lb; NZWP20B 35 lb; NZW40B 49 lb; NZWP40B 60 lb; NZW60B 70 lb; NZWP60B 86 lb
• Installation: Burner only; installs in a NetZero factory firebox (sold separately, one burner per firebox) or a custom enclosure
• Use: Indoor use only

Ownership & Maintenance

Use soft or slightly hard water (3.5 to 8.5 gpg), and don't fill it with distilled water or connect it to a reverse osmosis system. A built-in UV-C light turns on for a few minutes each day when the burner isn't in use. We offer ongoing service for our customers.

The Waterplace is easier to understand once you see it running. Stop by our Auburn, Brunswick, and Yarmouth showrooms, and we'll help you pick a size, a firebox or custom enclosure, and the right water setup. Or browse Mendota and NetZero fireplaces.
