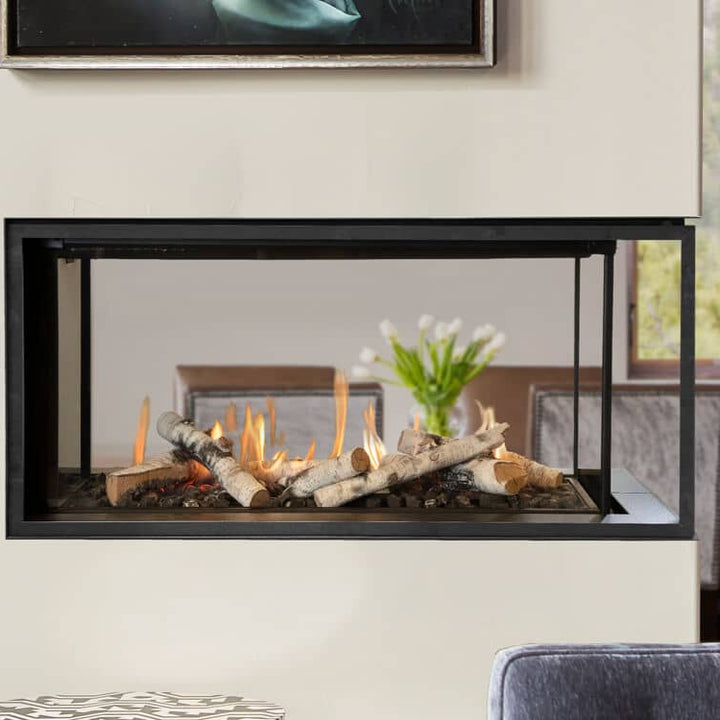

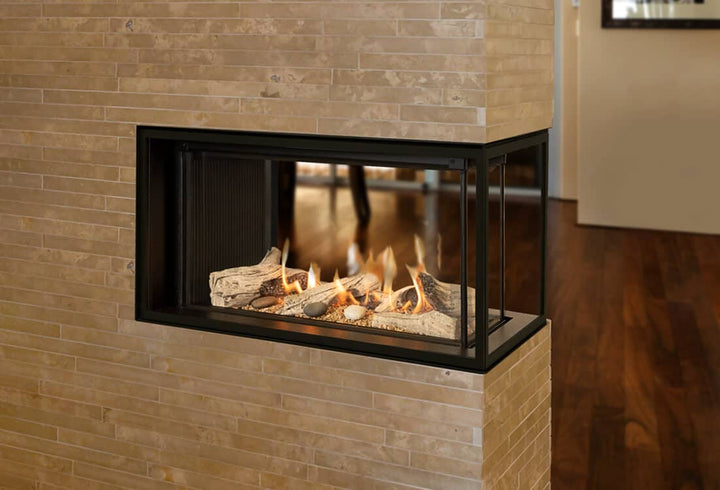

Valor LX1 Pier Gas Fireplace, Natural Gas

The Valor LX1 Pier is built to sit between spaces rather than against a wall. Valor designed it to fit into any home, creating two rooms out of one or easing the move from one space to the next, so the fire becomes part of the architecture. Decorative overhead lighting adds a finished glow above the fuel bed.

This listing is the natural gas engine. It heats on battery power, so it doesn't need household electricity to run as a heater, and the Valor 10 remote with thermostatic mode is included. HeatShift is required on the LX1, including a canopy kit option made for pony-wall installations. You choose the fuel bed and liner panel separately.

What Makes the LX1 Pier Different

• A fireplace that divides a room. Valor says the LX1 Pier can create two rooms out of one or ease the transition from one space to another.
• Decorative overhead lighting. Lights above the fuel bed add a finished look to the fire.
• Battery powered heater. It heats on battery power without household electricity. Power is only needed for the overhead lighting and the optional WiFi kit.
• HeatShift, including a canopy option. HeatShift is required. Valor offers a HeatShift Canopy Kit made for pony-wall installations, along with standard plenum options.

This listing is the Valor 2100PKN LX1 Pier engine for natural gas. The fuel bed and liner panel are ordered separately.

Key Specifications

• Natural gas input: 14,000 to 25,000 BTU/hr
• Maximum output (Valor): 17,573 BTU/hr
• EnerGuide efficiency (CSA P.4.1-15): 66.6%
• Venting: 4 in x 6-5/8 in co-axial direct vent, top outlet; co-linear with adapters
• Power: Runs on battery power as a heater; household power needed for the overhead lighting and optional WiFi
• Lighting: Decorative overhead lighting
• Remote: Valor 10 remote with thermostatic mode, included
• HeatShift: Required (canopy kit available for pony-wall installations)
• App control: Optional, needs the GV60WiFi WiFi upgrade kit
• Included with engine: Owner and installation manuals, Valor 10 remote and wall holder, AA and AAA batteries, RBWSK wall switch kit
• Sold separately: Fuel bed and liner panel

The BTU and EnerGuide ratings are Valor's. How each side of the room feels depends on the layout, the installation, and how you use the fireplace.

Ownership & Maintenance

The LX1 uses AA batteries as its main power source, so keep a spare set in the drawer. Hearth Doctor customers get support after the sale.

A pier fireplace takes real planning for framing and HeatShift. Visit our Auburn, Brunswick, and Yarmouth showrooms and we'll help with layout, venting, clearances, and installation.
