Mendota DXV35 Deep Timber 4 LX Gas Fireplace

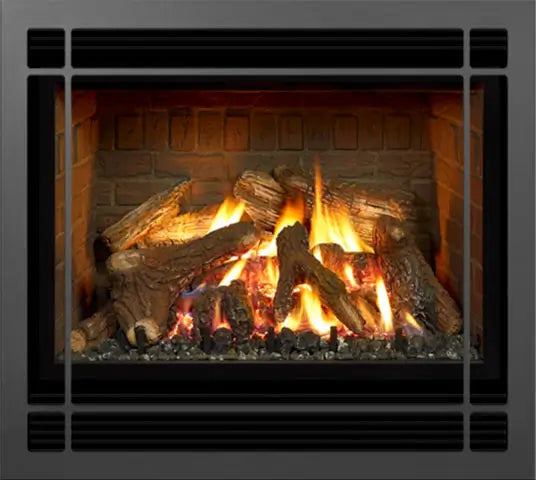

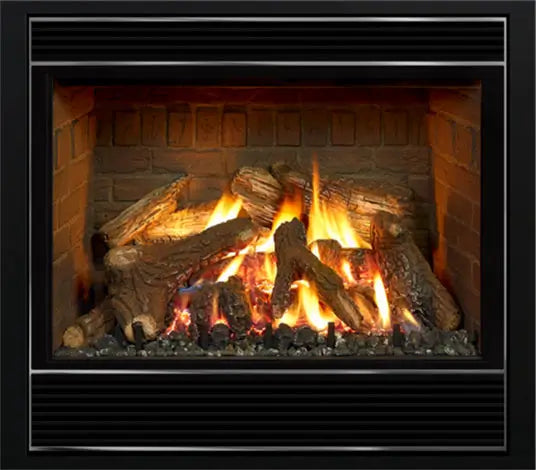

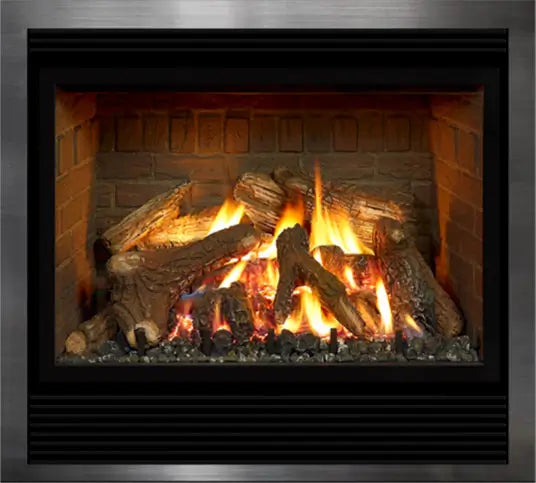

The Mendota DXV35 Deep Timber 4 LX gives you a traditional, log-filled gas fire in a fireplace that doesn't need much depth. Mendota builds it with a space-saving 15-1/2 inch deep firebox and direct vent or corner vent capability, which opens up spots where a deeper unit won't fit. A 9-piece log set with a glowing ember bed sits behind non-reflective NeoCeram glass, so you see the fire instead of your own reflection.
This is the electronic ignition version of the DXV35. It lights with IPI and runs from a thermostatic remote with Smart Thermostat Mode. Natural gas input runs from 10,000 to 33,000 BTU/hr, so you can turn the fire way down for a quiet evening or run it full.
What Makes the DXV35 Deep Timber 4 LX Different
- Fits where depth is tight. The 15-1/2 inch deep firebox and corner vent capability give you more placement options than a deeper fireplace.
- Remote and thermostat control. IPI electronic ignition lights the fire from the thermostatic remote, which also has a Smart Thermostat Mode.
- Battery backup. Mendota's manual allows it to run on DC battery power during an outage with high-capacity 6-volt batteries. The blower and accent light won't run until the power's back.
- A clear look at the fire. Non-reflective NeoCeram glass and a 9-piece log set with an ember bed keep the attention on the flames.
- Power vent option. Along with coaxial direct venting, Mendota allows an approved power vent on this model.
This listing is the Mendota DXV35DT4 (Deep Timber 4 LX) direct vent gas fireplace, model AA-11-04152, with IPI electronic ignition.
Key Specifications
- Natural gas input: 10,000 to 33,000 BTU/hr
- Propane input: 13,000 to 33,000 BTU/hr
- Fireplace efficiency (P.4): 76.35%
- Ignition: IPI electronic ignition, AC primary power with DC backup
- Remote: Thermostatic remote with Smart Thermostat Mode
- Venting: Direct vent, coaxial rigid 4 in exhaust / 6-5/8 in air inlet; approved power vent allowed
- Blower: 190 CFM dual blower system, 120VAC
- Power outage: Can run on DC battery power (high-capacity 6-volt batteries required); blower and accent light do not work
- Visible glass (manual): 28-3/8 in x 16-1/16 in, non-reflective NeoCeram
- Log set: 9-piece log set with ember bed
Input and efficiency numbers are Mendota's ratings. How the fireplace feels in your home depends on the room, the layout, the venting, and how you run it.
Ownership & Maintenance
In cold winter weather, Mendota's manual calls for turning on Continuous Pilot Mode (CPI) so the pilot stays lit. Unless the fireplace is raised 6 inches or more off the floor, Mendota requires a hearth pad rated at least R-1. We provide ongoing service for our customers after the install.
Want to see the DXV35 next to other gas fireplaces? Visit our Auburn, Brunswick, and Yarmouth showrooms. We'll help with placement, venting, framing, and installation.
